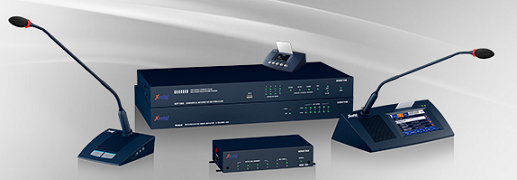

Senator Conference System

Fully Digital Networked DSP Conference System

The Senator System is capable to process up to 504
microphones using a single DCP1000 DSP processor.
It's superior and leading DSP algorithms will support
each delegate unit to be individually processed for
AGC, Volume, 8 Bands of PEQ and much more. The
breathtaking technology of Mix-minus Auto Calibration
and Voice Activated Gate including its total netwokability
which will even allow for the most complicated and
decentralized conference applications.

CDM1000

• Desktop Delegate Unit with 3 selectable
  functions: Delegate, Chairperson,
  Interpreter
• Built In loudspeaker with integrated AEC
  (Acoustical Exho Cancellation)
• Connections for headset and votepad
  (Future option) and volume control
• XLR connector connects to any of
  Xavtel's gooseneck microphones (3rd
  party mics will also be supported)
• The two buttons and LEDs for speaking
  or function selection

DCP1000

• Up to 504 delegate units and 64 DCA660 amplifier
  can be connected to a single DCP1000
• Up to 32 DCP1000 can be connected via the 64
  channel Xavnet digital audio network
• Each connected delegate unit will be processed
  individually and all parameters will be stored
  in the DCP1000
• Enhanced DSP functions such as 8 band PEQ,
  AGC, Feedback Suppressor, Gain sharing auto
  mixer and Voice Activated Gate
• Optional AEC-Car (Acoustical Echo Cancellation)
  can be installed in the DCP1000, enabling SIP
  and VoIP for distance and web conferencing
• Ease of use and setup with auto network deploy
  and special drag 'n' drop functions with the
  Senator Designer Software

CDM-T5

• Desktop Chairperson Delegate Unit with a
  5" LCD touch screen
• Muitl language interface (every language
  possible)
• Full system control unit including dialer,
  volume controls and conference management
• Builtin loudspeaker with integrated AEC
  (Acoustical Echo Cancellation)
• USB audio connection for easy to use web-
  conferencing applications (needs AEC-Card
  Installed into DCP1000)
• XLR connector connects to any of Xavtel
  gooseneck microphones (3rd party mics will
  also be supported)

DCA660

• Connect up to 64 DCA600 units to a single
  DCP1000 processor
• Fully digital audio link to the DCP1000
  processor
• Additional DSP functions like Gain sharing
  auto mixer, 5 band PEQ, Feedback suppressor
  and Delay
• Industry first auto Mix-minus calibration for
  every room setup
• LED indicators to recognicing each amplifier
  channel status

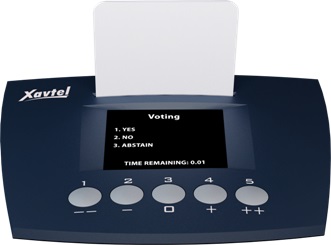

Votepad AT/DR

• Buttons for voting and rating:

  • Yes (+), No (-) and abstain (x) for parliamentary
    voting
  • Numerals 1 to 5 for mulitple choice, opinion
    polling and rating
  • Rating scale: --, -, 0, +, ++ for audience
    response
• LCD screen for displaying real-time voting
  result and information
• RFID card reader for sign-in
• Votepad connects to CDM1000 microphone,
  and Votepad DR connects directly to DDB104
  mic junction box
• Direct loop through connection to the CDM-
  NET loop (Votepad DR)
• Voting functions and voting instruction displayed
  on LCD of votepad can be configured by Senator
  Designer software
